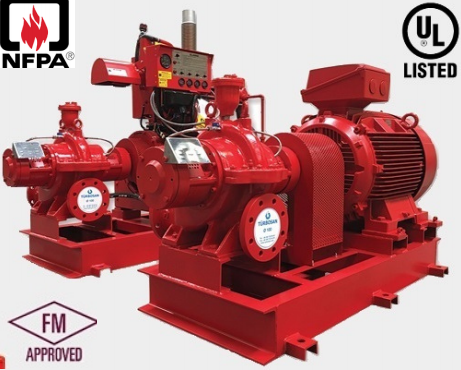

The Turbosan CEP Series is a double-suction, horizontally split case pump designed for heavy-duty applications requiring high efficiency and ease of maintenance. Its robust construction ensures longevity and reliable performance in demanding environments.
Key Features:
Design: Double suction, single-stage, horizontally split casing.
Materials: Cast iron casing and impeller; C-1040 carbon steel shaft; stainless steel shaft sleeve.
| Item Description | Brand Name | Origin Country |
|---|---|---|
| Electric motor | WEG
MARATHON |
BRAZIL
USA |
| Diesel motor | CLARKE | U.K |
| Controller | TORNTECH | CANADA |
| EX 26605 | ||||||
| CENTRIFUGAL FIRE PUMPS , SPLIT CASE (QXJY) | Approx Speed (rpm) | 3570 rpm | ||||
| Rated Capacity (gPrn) |
Rated Capacity (m3/h) |
Size (in.) | Model Dsg | TENTATIVE Rated Net Pressure Range (psi) |
TENTATIVE Rated Net Pressure Range (mwc) |
TENTATIVE Max Working Pressure (psi) |
| 500 | 114 | 6×4 | CEP 100/250 | 142-230 | 100 – 161 | 233 |
| 750 | 170 | 6×4 | CEP 100/250 | 138-227 | 97 – 159 | 233 |
| 1000 | 227 | 6×4 | CEP 100/250 | 128-223 | 90 – 156 | 233 |
| 1250 | 284 | 6×4 | CEP 100/250 | 118-217 | 83 – 152 | 233 |
